-40~+105°C時的6G貼片石英晶體和貼片振蕩器HG324240F23GCT
來源：http://www.djbyg.com 作者：金洛鑫 2023年06月29

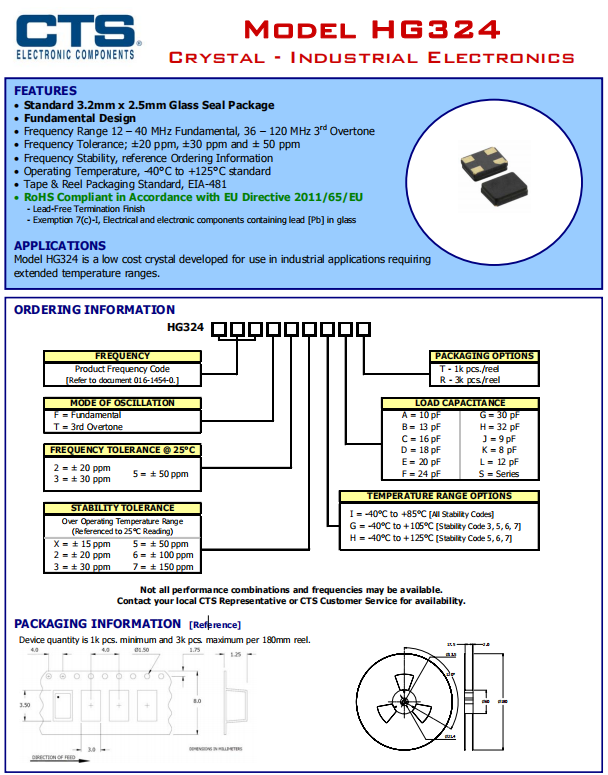

HG324240F23GCT晶振就是CTS晶振公司為需要擴展溫度范圍的工業應用開發的一款型號為HG324的無源晶振，石英晶體，尺寸3.2*2.5mm，頻率范圍12·120MHz，工作溫度可以選-40~125°C，-40~105°C，-40~85°C，頻率穩定性強，體積小，耐熱性好，是一種低成本的SMD石英晶體，由于它用途廣泛，一經上市，就受到了廣大客戶群體的喜歡。
CTS晶振公司成立于1896年,CTS晶振公司(NYSE:CTS)是一個領先的設計師和制造商的傳感器、執行器和電子組件。石英晶振在航空航天、通訊、國防、工業、信息技術、醫療和交通運輸市場。CTS晶振公司在北美、亞洲和歐洲擁有12個生產基地，致力于為全球各地的工業伙伴提供先進的技術、卓越的客戶服務和優越的價值。CTS晶振公司的目標是在技術的前沿，為世界各地的產品和服務的創造和提升提供創新的石英晶振,晶體振蕩器,傳感、連接和運動解決方案。
CTS晶振公司為信息技術和電信市場提供貼片晶振、溫補晶振、石英晶體振蕩器等多種電子元件。這些石英晶振可以在宏小區基站發現，小蜂窩基站、衛星通信系統、回程通信的應用，以及無線和有線基礎設施。CTS晶振公司在信息技術和電信市場的創新支持市場部門的發展趨勢，如低功耗，更小的形式因素，增加帶寬需求和物聯網（物聯網）。
CTS晶振一直是未來的一部分。隨著技術的不斷進步，我們也一直在與之一起，為滿足人們不斷變化的需求而設計智能的方法。我們的產品在許多行業都得到了認可，所生產石英晶振,高精度貼片晶振,晶體振蕩器的性能、可靠性和工程技術都很出色。我們的客戶以我們卓越的、一貫的服務水平和我們與他們合作的能力來評價我們。我們的全球足跡使我們能夠為全球市場和大公司服務，并與本地市場中的中小企業合作，從而實現一個智能和無縫的世界。
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 |
| ATS12ASM-1E | CTS 晶振 | ATS-SM | 12MHz | ±50ppm | ±30ppm | 20pF |
| ATS240BSM-1E | CTS 晶振 | ATS-SM | 24MHz | ±50ppm | ±30ppm | 18pF |
| ATS08ASM-1 | CTS 晶振 | ATS-SM | 8MHz | ±50ppm | ±30ppm | 20pF |
| ATS049BSM-1 | CTS 晶振 | ATS-SM | 4.9152MHz | ±50ppm | ±30ppm | 18pF |
| ATS080BSM-1 | CTS 晶振 | ATS-SM | 8MHz | ±50ppm | ±30ppm | 18pF |
| ATS080BSM-1 | CTS 晶振 | ATS-SM | 8MHz | ±50ppm | ±30ppm | 18pF |
| ATS120SM-1 | CTS 晶振 | ATS-SM | 12MHz | ±50ppm | ±30ppm | Series |
| ATS037BSM-1 | CTS 晶振 | ATS-SM | 3.6864MHz | ±50ppm | ±30ppm | 18pF |
| ATS120SM-1E | CTS 晶振 | ATS-SM | 12MHz | ±50ppm | ±30ppm | Series |
| ATS16B | CTS 晶振 | ATS | 16MHz | ±50ppm | ±30ppm | 18pF |
| ATS073-E | CTS 晶振 | ATS | 7.3728MHz | ±50ppm | ±30ppm | 20pF |
| ATS080B | CTS 晶振 | ATS | 8MHz | ±50ppm | ±30ppm | 18pF |
| ATS100B-E | CTS 晶振 | ATS | 10MHz | ±50ppm | ±30ppm | 18pF |
| ATS061B-E | CTS 晶振 | ATS | 6.144MHz | ±50ppm | ±30ppm | 18pF |
| ATS080C | CTS 晶振 | ATS | 8MHz | ±50ppm | ±30ppm | 32pF |
| ATS040 | CTS 晶振 | ATS | 4MHz | ±50ppm | ±30ppm | 20pF |
| ATS200C | CTS 晶振 | ATS | 20MHz | ±50ppm | ±30ppm | 18pF |
| ATS147B | CTS 晶振 | ATS | 14.7456MHz | ±50ppm | ±30ppm | 18pF |
| ATS12A | CTS 晶振 | ATS | 12MHz | ±50ppm | ±30ppm | 20pF |
| ATS042 | CTS 晶振 | ATS | 4.9152MHz | ±50ppm | ±30ppm | 20pF |
| ATS245A | CTS 晶振 | ATS | 24.576MHz | ±50ppm | ±30ppm | 18pF |
| ATS120B | CTS 晶振 | ATS | 12MHz | ±50ppm | ±30ppm | 18pF |
| ATS25A-E | CTS 晶振 | ATS | 25MHz | ±50ppm | ±30ppm | 20pF |
| ATS040-E | CTS 晶振 | ATS | 4MHz | ±50ppm | ±30ppm | 20pF |
| ATS204 | CTS 晶振 | ATS | 20.48MHz | ±50ppm | ±30ppm | 20pF |
| ATS08A | CTS 晶振 | ATS | 8MHz | ±50ppm | ±30ppm | 20pF |
| ATS10A-E | CTS 晶振 | ATS | 10MHz | ±50ppm | ±30ppm | 20pF |
| ATS24ASM-1E | CTS 晶振 | ATS-SM | 24MHz | ±50ppm | ±30ppm | 20pF |
| 403C11A32M00000 | CTS 晶振 | 403 | 32MHz | ±10ppm | ±10ppm | 10pF |
| 403C11A32M00000 | CTS 晶振 | 403 | 32MHz | ±10ppm | ±10ppm | 10pF |
| 403C35D25M00000 | CTS 晶振 | 403 | 25MHz | ±50ppm | ±30ppm | 18pF |
| 403C35D25M00000 | CTS 晶振 | 403 | 25MHz | ±50ppm | ±30ppm | 18pF |
| 403C35D25M00000 | CTS 晶振 | 403 | 25MHz | ±50ppm | ±30ppm | 18pF |
| 403C35D12M00000 | CTS 晶振 | 403 | 12MHz | ±50ppm | ±30ppm | 18pF |
| 403C35D12M00000 | CTS 晶振 | 403 | 12MHz | ±50ppm | ±30ppm | 18pF |
| 403C35D24M00000 | CTS 晶振 | 403 | 24MHz | ±50ppm | ±30ppm | 18pF |
| 403C35D24M00000 | CTS 晶振 | 403 | 24MHz | ±50ppm | ±30ppm | 18pF |
| 403C35E13M00000 | CTS 晶振 | 403 | 13MHz | ±50ppm | ±30ppm | 20pF |
| 403C35E13M00000 | CTS 晶振 | 403 | 13MHz | ±50ppm | ±30ppm | 20pF |
| 403C35E27M00000 | CTS 晶振 | 403 | 27MHz | ±50ppm | ±30ppm | 20pF |
| 403C35E27M00000 | CTS 晶振 | 403 | 27MHz | ±50ppm | ±30ppm | 20pF |
| 403C11A16M00000 | CTS 晶振 | 403 | 16MHz | ±10ppm | ±10ppm | 10pF |
| 403C11A16M00000 | CTS 晶振 | 403 | 16MHz | ±10ppm | ±10ppm | 10pF |
| 403C11A24M00000 | CTS 晶振 | 403 | 24MHz | ±10ppm | ±10ppm | 10pF |
| 405I35D12M00000 | CTS 晶振 | 405 | 12MHz | ±50ppm | ±30ppm | 18pF |
| 405C35B25M00000 | CTS 晶振 | 405 | 25MHz | ±50ppm | ±30ppm | 13pF |
| 405I35D25M00000 | CTS 晶振 | 405 | 25MHz | ±50ppm | ±30ppm | 18pF |
| 405C35D12M00000 | CTS 晶振 | 405 | 12MHz | ±50ppm | ±30ppm | 18pF |
| 405C35B24M00000 | CTS 晶振 | 405 | 24MHz | ±50ppm | ±30ppm | 13pF |
| 405C35D27M00000 | CTS 晶振 | 405 | 27MHz | ±50ppm | ±30ppm | 18pF |
| 405C35B16M36800 | CTS 晶振 | 405 | 16.368MHz | ±50ppm | ±30ppm | 13pF |
| 405C35B19M20000 | CTS 晶振 | 405 | 19.2MHz | ±50ppm | ±30ppm | 13pF |
| 405I35D48M00000 | CTS 晶振 | 405 | 48MHz | ±50ppm | ±30ppm | 18pF |
| 405C35B11M05920 | CTS 晶振 | 405 | 11.0592MHz | ±50ppm | ±30ppm | 13pF |
| 405C35E16M00000 | CTS 晶振 | 405 | 16MHz | ±50ppm | ±30ppm | 20pF |
| 405C35D10M00000 | CTS 晶振 | 405 | 10MHz | ±50ppm | ±30ppm | 18pF |
| 406I35D08M00000 | CTS 晶振 | 406 | 8MHz | ±50ppm | ±30ppm | 18pF |
| 406C35B13M00000 | CTS 晶振 | 406 | 13MHz | ±50ppm | ±30ppm | 13pF |
| 406C35D12M00000 | CTS 晶振 | 406 | 12MHz | ±50ppm | ±30ppm | 18pF |
| 406C35B14M00000 | CTS 晶振 | 406 | 14MHz | ±50ppm | ±30ppm | 13pF |
| TF322P32K7680R | CTS 晶振 | TF32 | 32.768kHz | ±10ppm | ±20ppm | 12.5pF |
| TF322P32K7680R | CTS 晶振 | TF32 | 32.768kHz | ±10ppm | ±20ppm | 12.5pF |
| TF322P32K7680R | CTS 晶振 | TF32 | 32.768kHz | ±10ppm | ±20ppm | 12.5pF |
| 405C11B26M00000 | CTS 晶振 | 405 | 26MHz | ±10ppm | ±10ppm | 13pF |
| 405C11A16M00000 | CTS 晶振 | 405 | 16MHz | ±10ppm | ±10ppm | 10pF |
| 405C11A19M20000 | CTS 晶振 | 405 | 19.2MHz | ±10ppm | ±10ppm | 10pF |
| TF202P32K7680R | CTS 晶振 | TF20 | 32.768kHz | ±10ppm | ±20ppm | 12.5pF |
| TF202P32K7680R | CTS 晶振 | TF20 | 32.768kHz | ±10ppm | ±20ppm | 12.5pF |
| TF202P32K7680R | CTS 晶振 | TF20 | 32.768kHz | ±10ppm | ±20ppm | 12.5pF |
| 403C11E32M00000 | CTS 晶振 | 403 | 32MHz | ±10ppm | ±10ppm | 20pF |
| 403C11E32M00000 | CTS 晶振 | 403 | 32MHz | ±10ppm | ±10ppm | 20pF |
| 403C11E32M00000 | CTS 晶振 | 403 | 32MHz | ±10ppm | ±10ppm | 20pF |
| 403C35D27M00000 | CTS 晶振 | 403 | 27MHz | ±50ppm | ±30ppm | 18pF |
| 403C35D27M00000 | CTS 晶振 | 403 | 27MHz | ±50ppm | ±30ppm | 18pF |
| 403C35D27M00000 | CTS 晶振 | 403 | 27MHz | ±50ppm | ±30ppm | 18pF |
| 403C35E26M00000 | CTS 晶振 | 403 | 26MHz | ±50ppm | ±30ppm | 20pF |
| 403C35E26M00000 | CTS 晶振 | 403 | 26MHz | ±50ppm | ±30ppm | 20pF |
| 403C35E26M00000 | CTS 晶振 | 403 | 26MHz | ±50ppm | ±30ppm | 20pF |
| 403C35D48M00000 | CTS 晶振 | 403 | 48MHz | ±50ppm | ±30ppm | 18pF |
| 403C35D48M00000 | CTS 晶振 | 403 | 48MHz | ±50ppm | ±30ppm | 18pF |
