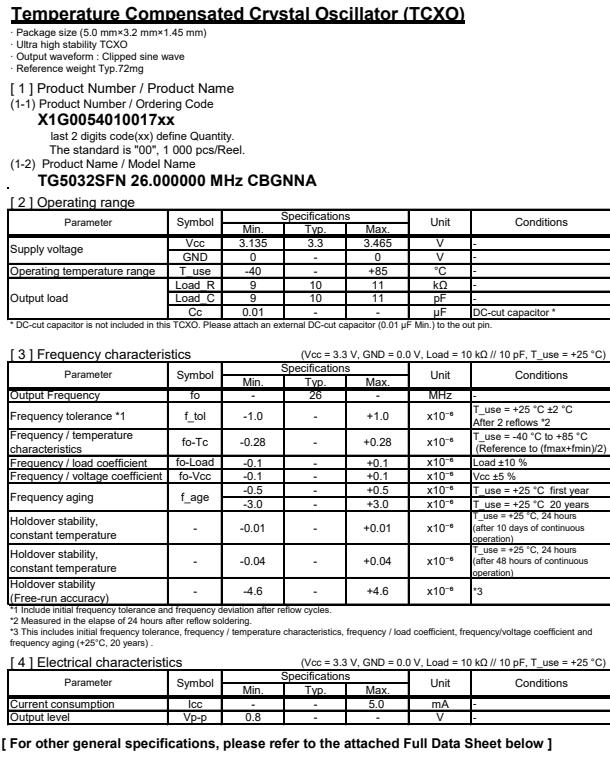

低損耗的道路交通燈控制器溫補晶振常用編碼X1G005401001700，在這個激烈的市場斗爭之中，愛普生公司始終堅守初心，將最好的品質給到每一位用戶，匠心打磨每一款產品晶振，并以超乎用戶滿意度的效果，經過層層篩選，高要求高標準制造而成，推出這款高性價的TG5032SFN溫補晶振，編碼X1G005401001700，頻率26.000000兆赫，輸出剪波正弦波，電源電壓3.13 ~ 3.46 V，電源電壓(一般)3.300 V，尺寸(LxWxH)5.0 x 3.2 x 1.4 mm，操作溫度-40至++85°C，頻率公差+/- 1.0 ppm，具有高品質，低損耗，低抖動之特點，非常適合用于道路交通燈控制器，無線設備，儀器儀表，智能家居等產品。

石英晶振編碼	型號	頻率	尺寸	電源電壓	F.Tol@25°C	Ope Temperature	Freq/Temp
X1G005401001200	TG5032SFN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005401001300	TG5032SFN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	2.700 to 3.000 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005401001500	TG5032SFN	26.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005401001600	TG5032SFN	26.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.25 ppm
X1G005401001700	TG5032SFN	26.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G005401001800	TG5032SFN	30.720000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005401001900	TG5032SFN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005401002000	TG5032SFN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005401002100	TG5032SFN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005401002300	TG5032SFN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C	+/-0.10 ppm
X1G005391000600	TG5032CFN	19.200000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005391000700	TG5032CFN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G005391000800	TG5032CFN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G005391000900	TG5032CFN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G005391001000	TG5032CFN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005391001100	TG5032CFN	26.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G005391001500	TG5032CFN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm

愛普生拓優科夢（Epson — yocom）將進一步究極用精微加工發揮“石英”材料的優越性能的“QMEMS”技術,創造出更小、更高性能或全新功能的元器件;同時,融合愛普生晶振公司的半導體與軟件技術增添便于使用、能讓顧客更體驗到利用價值的“解決方案”.通過上述工作,我們將為社會的發展以及實現更舒暢的未來而竭誠奉獻.
