FKQ系列實現出色的抖動和穩定性,FKD330001
來源：http://www.djbyg.com 作者：金洛鑫電子 2022年07月01
DIODES百利通亞陶晶體所生產的石英晶振,貼片晶振,有源晶體振蕩器,壓電石英晶體元器件、壓電石英晶體、有源晶體廣泛應用于智能設備,汽車電子,無線通訊,網絡通信,精密儀器,GPS衛星,網絡控制器,全球GPS定位系統等領域.工程、銷售、倉儲和物流辦事處設在臺北,香港、曼徹斯特、上海、深圳、中國、韓國、慕尼黑、德國、以及世界各地的支持辦事處.
晶體振蕩器 (XO) - 汽車，我們的汽車兼容晶體振蕩器 (XO) 旨在滿足汽車應用的嚴格要求，并在其部件號中以“Q”區分。它們是在經過嚴格 IATF 16949 標準認證的設施中制造的，并且能夠根據 VDA6.3 進行客戶審核。這些零件均受 PPAP（生產零件批準流程）文檔支持，從而滿足汽車電子行業的所有要求。
此外，所有符合汽車標準的石英晶體振蕩器 (XO) 均已使用 AECQ-200和QAP-81 進行了認證，以涵蓋石英諧振器和XO IC，而不是使用 AEC-Q100（僅針對 IC 定義）。我們計劃在2022年開始為我們新的符合汽車標準的XO產品逐步采用AECQ-104 認證標準，但它不會將以前符合AECQ-200 + QAP-81的產品重新認證為 AEC-Q104（AECQ- 200 + QAP-81 資格標準和 AECQ-0104 資格標準是測試數量和添加 X 射線檢查）。
FKQ系列實現出色的抖動和穩定性,FKD330001,FK4000036,晶體振蕩器,汽車電子晶振
FKQ系列實現出色的抖動和穩定性,FKD330001,FK4000036,晶體振蕩器,汽車電子晶振
FKQ系列3.3V時鐘晶體可在廣泛的工作條件和頻率范圍內實現出色的抖動和穩定性。FKQ 3.3V、3.2x2.5mm、汽車級CMOS晶體振蕩器，使用非PLL振蕩器設計在內部生成的輸出時鐘信號與 LVCMOS/LVTTL 邏輯電平兼容。該器件采用卷帶包裝，貼片振蕩器，采用3.2 x 2.5mm表面貼裝陶瓷封裝。
FKQ系列實現出色的抖動和穩定性,FKD330001,FK4000036,晶體振蕩器,汽車電子晶振
| Manufacturer Part Number原廠代碼 | Manufacturer品牌 | Series型號 | Frequency 頻率 | Frequency Stability頻率穩定度 | Operating Temperature 工作溫度 |
| FNETHE025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -20°C ~ 70°C |
| FNETHE025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -20°C ~ 70°C |
| FNETHE025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -20°C ~ 70°C |
| FNSURV027 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 27MHz | ±30ppm | -20°C ~ 70°C |
| FNSURV027 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 27MHz | ±30ppm | -20°C ~ 70°C |
| FNSURV027 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 27MHz | ±30ppm | -20°C ~ 70°C |
| FNGEPO002 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 2.048MHz | ±50ppm | -20°C ~ 70°C |
| FNGEPO002 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 2.048MHz | ±50ppm | -20°C ~ 70°C |
| FNGEPO002 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 2.048MHz | ±50ppm | -20°C ~ 70°C |
| FKSSD1025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -10°C ~ 70°C |
| FKSSD1025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -10°C ~ 70°C |
| FKSSD1025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -10°C ~ 70°C |
| UJWIFI026 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 26MHz | ±20ppm | -30°C ~ 85°C |
| UJWIFI026 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 26MHz | ±20ppm | -30°C ~ 85°C |
| UJWIFI026 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 26MHz | ±20ppm | -30°C ~ 85°C |
| FNEPON125 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 125MHz | ±50ppm | -20°C ~ 70°C |
| FNEPON125 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 125MHz | ±50ppm | -20°C ~ 70°C |
| FNEPON125 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 125MHz | ±50ppm | -20°C ~ 70°C |
| FK1330001Z | Diodes Incorporated | SaRonix-eCera™ FK | 13.3333MHz | ±25ppm | -40°C ~ 85°C |
| FK1330001Z | Diodes Incorporated | SaRonix-eCera™ FK | 13.3333MHz | ±25ppm | -40°C ~ 85°C |
| FK1330001Z | Diodes Incorporated | SaRonix-eCera™ FK | 13.3333MHz | ±25ppm | -40°C ~ 85°C |
| FJ2400011 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400011 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400011 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400002 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400002 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400002 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FN2500149 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -40°C ~ 85°C |
| FN2500149 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -40°C ~ 85°C |
FKQ系列3.3V時鐘晶體可在廣泛的工作條件和頻率范圍內實現出色的抖動和穩定性。FKQ 3.3V、3.2x2.5mm、汽車級CMOS晶體振蕩器，使用非PLL振蕩器設計在內部生成的輸出時鐘信號與 LVCMOS/LVTTL 邏輯電平兼容。該器件采用卷帶包裝，貼片振蕩器，采用3.2 x 2.5mm表面貼裝陶瓷封裝。
產品特點
符合AEC-Q200標準
1 至156.25 MHz 頻率范圍
<1 ps RMS 抖動
3.3V CMOS/TTL 兼容邏輯電平
與標準3.2x2.5mm 封裝引腳兼容
專為標準回流和清洗技術而設計
低功耗待機模式
無鉛且符合 RoHS/Green 標準
應用：FKQ 系列是需要低抖動和低功耗的汽車應用的理想?yún)⒖紩r鐘，包括：信息娛樂系統，主機
| FN2500149 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -40°C ~ 85°C |
| SXGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm | -40°C ~ 85°C |
| SXGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm | -40°C ~ 85°C |
| SXGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm | -40°C ~ 85°C |
| HX2513F0026.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 26MHz | ±50ppm | -40°C ~ 105°C |
| HX2513F0026.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 26MHz | ±50ppm | -40°C ~ 105°C |
| HX2513F0026.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 26MHz | ±50ppm | -40°C ~ 105°C |
| HX3125006Q | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±30ppm | -40°C ~ 105°C |
| HX3125006Q | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±30ppm | -40°C ~ 105°C |
| HX3125006Q | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±30ppm | -40°C ~ 105°C |
| NX3211C0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -20°C ~ 70°C |
| NX3211C0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -20°C ~ 70°C |
| NX3211C0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -20°C ~ 70°C |
| FJ1600002 | Diodes Incorporated | SaRonix-eCera™ FJ | 16MHz | ±50ppm | -20°C ~ 70°C |
| FJ1600002 | Diodes Incorporated | SaRonix-eCera™ FJ | 16MHz | ±50ppm | -20°C ~ 70°C |
| FJ1600002 | Diodes Incorporated | SaRonix-eCera™ FJ | 16MHz | ±50ppm | -20°C ~ 70°C |
| JX7011D0070.656000 | Diodes Incorporated | SaRonix-eCera™ JX | 70.656MHz | ±25ppm | -40°C ~ 85°C |
| JX7011D0070.656000 | Diodes Incorporated | SaRonix-eCera™ JX | 70.656MHz | ±25ppm | -40°C ~ 85°C |
| JX7011D0070.656000 | Diodes Incorporated | SaRonix-eCera™ JX | 70.656MHz | ±25ppm | -40°C ~ 85°C |
| UJ2600007Z | Diodes Incorporated | SaRonix-eCera™ UJ | 26MHz | ±20ppm | -20°C ~ 70°C |
| UJ2600007Z | Diodes Incorporated | SaRonix-eCera™ UJ | 26MHz | ±20ppm | -20°C ~ 70°C |
| UJ2600007Z | Diodes Incorporated | SaRonix-eCera™ UJ | 26MHz | ±20ppm | -20°C ~ 70°C |
| FJ1120001Z | Diodes Incorporated | SaRonix-eCera™ FJ | 11.2896MHz | ±25ppm | -40°C ~ 85°C |
| FJ1120001Z | Diodes Incorporated | SaRonix-eCera™ FJ | 11.2896MHz | ±25ppm | -40°C ~ 85°C |
| FJ1120001Z | Diodes Incorporated | SaRonix-eCera™ FJ | 11.2896MHz | ±25ppm | -40°C ~ 85°C |
| FDC500026 | Diodes Incorporated | SaRonix-eCera™ FD | 125MHz | ±50ppm | -20°C ~ 70°C |
| FDC500026 | Diodes Incorporated | SaRonix-eCera™ FD | 125MHz | ±50ppm | -20°C ~ 70°C |
| FDC500026 | Diodes Incorporated | SaRonix-eCera™ FD | 125MHz | ±50ppm | -20°C ~ 70°C |
| HX7011C0025.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±25ppm | -40°C ~ 105°C |
| HX7011C0025.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±25ppm | -40°C ~ 105°C |
FKQ系列實現出色的抖動和穩定性,FKD330001,FK4000036,晶體振蕩器,汽車電子晶振
產品參數：
產品參數：
亞科 XO將軍
產品系列 FKQ
合規性（僅汽車支持 PPAP） 汽車
頻率范圍 (MHz) 1 至 162
抖動均方根 (ps) <1
穩定性 (PPM) 20 到 50
包裝尺寸3.2x2.5mmSMD晶振
包裝類型 陶瓷縫
輸出邏輯 CMOS
電源電壓 (V) 3.3
墊 4

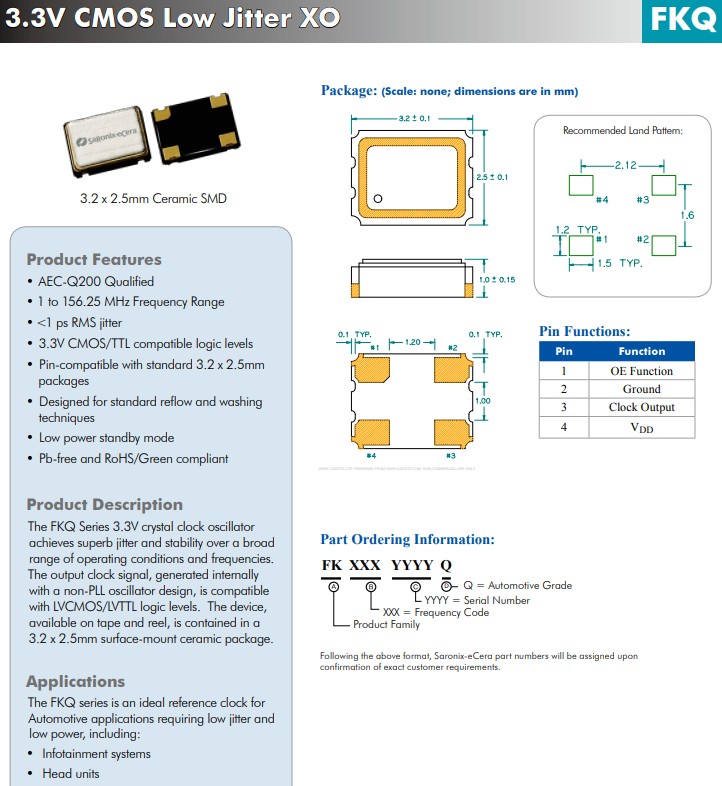

.JPG)
FKQ系列實現出色的抖動和穩定性,FKD330001,FK4000036,晶體振蕩器,汽車電子晶振
| HX7011C0025.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±25ppm | -40°C ~ 105°C |
| NX5011B0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm | -20°C ~ 70°C |
| NX5011B0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm | -20°C ~ 70°C |
| NX5011B0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm | -20°C ~ 70°C |
| FNA000088Z | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±50ppm | -40°C ~ 85°C |
| FNA000088Z | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±50ppm | -40°C ~ 85°C |
| FNA000088Z | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±50ppm | -40°C ~ 85°C |
| FNA000065 | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±25ppm | -20°C ~ 70°C |
| FNA000065 | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±25ppm | -20°C ~ 70°C |
| FNA000065 | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±25ppm | -20°C ~ 70°C |
| NX71C50003 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm | -40°C ~ 85°C |
| NX71C50003 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm | -40°C ~ 85°C |
| NX71C50003 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm | -40°C ~ 85°C |
| FNC500131 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm | -40°C ~ 85°C |
| FNC500131 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm | -40°C ~ 85°C |
| FNC500131 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm | -40°C ~ 85°C |
| NX71C50001 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±20ppm | -20°C ~ 70°C |
| NX71C50001 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±20ppm | -20°C ~ 70°C |
| NX71C50001 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±20ppm | -20°C ~ 70°C |
| FM3900001Z | Diodes Incorporated | SaRonix-eCera™ FM | 39.0625MHz | ±50ppm | -40°C ~ 85°C |
| FM3900001Z | Diodes Incorporated | SaRonix-eCera™ FM | 39.0625MHz | ±50ppm | -40°C ~ 85°C |
| FM3900001Z | Diodes Incorporated | SaRonix-eCera™ FM | 39.0625MHz | ±50ppm | -40°C ~ 85°C |
| FKA000018Z | Diodes Incorporated | SaRonix-eCera™ FK | 100MHz | ±50ppm | -40°C ~ 85°C |
| FKA000018Z | Diodes Incorporated | SaRonix-eCera™ FK | 100MHz | ±50ppm | -40°C ~ 85°C |
| FKA000018Z | Diodes Incorporated | SaRonix-eCera™ FK | 100MHz | ±50ppm | -40°C ~ 85°C |
| HX3124501Q | Diodes Incorporated | SaRonix-eCera™ HX | 24.545452MHz | ±25ppm | -40°C ~ 105°C |
| HX3124501Q | Diodes Incorporated | SaRonix-eCera™ HX | 24.545452MHz | ±25ppm | -40°C ~ 105°C |
| HX3124501Q | Diodes Incorporated | SaRonix-eCera™ HX | 24.545452MHz | ±25ppm | -40°C ~ 105°C |
| HX31330001 | Diodes Incorporated | SaRonix-eCera™ HX | 33MHz | ±50ppm | -40°C ~ 90°C |
| HX31330001 | Diodes Incorporated | SaRonix-eCera™ HX | 33MHz | ±50ppm | -40°C ~ 90°C |
FKQ系列實現出色的抖動和穩定性,FKD330001,FK4000036,晶體振蕩器,汽車電子晶振
FDQ 1.8V 20~50 5.0 x 3.2 CMOS 1.8 4 1.8V、5.0x3.2mm、汽車級 CMOS 晶體振蕩器
FDQ 2.5V 20~50 5.0 x 3.2 CMOS 2.5 4 2.5V、5.0x3.2mm、汽車級 CMOS 晶體振蕩器
FDQ 3.3V 20~50 5.0 x 3.2 CMOS 3.3 4 3.3V、5.0x3.2mm、汽車級 CMOS 晶體振蕩器
FKQ 1.8V 20~50 3.2 x 2.5 CMOS 1.8 4 1.8V、3.2x2.5mm、汽車級 CMOS 晶體振蕩器
FKQ 2.5V 20~50 3.2 x 2.5 CMOS 2.5 4 2.5V、3.2x2.5mm、汽車級 CMOS 晶體振蕩器
FKQ 3.3V 20~50 3.2 x 2.5 CMOS 3.3 4 3.3V、3.2x2.5mm、汽車級 CMOS 晶體振蕩器
FNQ 1.8V 20~50 7.0 x 5.0 CMOS 1.8 4 1.8V、7.0x5.0mm、汽車級 CMOS 晶體振蕩器
FNQ 2.5V 20~50 7.0 x 5.0 CMOS 2.5 4 2.5V、7.0x5.0mm、汽車級 CMOS 晶體振蕩器
FNQ 3.3V 20~50 7.0 x 5.0 CMOS 3.3 4 3.3V、7.0x5.0mm、汽車級 CMOS 晶體振蕩器
