- 規格型號：4604444
- 頻率：27.7MHz
- 尺寸：1612mm
- 產品描述：FujiCom日本晶振,遙遙領先的6G無線傳輸晶振,FCX1M02770012E3J晶振，日本Fujicom晶振公司，富士晶振，高精度晶振，進口晶振，超小型晶振，1610晶振，石英晶振，二腳晶振，無源晶振，音叉晶體，KHz晶振，貼片晶振，6G信...
FujiCom日本晶振,遙遙領先的6G無線傳輸晶振,FCX1M02770012E3J晶振
品說明.jpg)
FujiCom日本晶振,遙遙領先的6G無線傳輸晶振,FCX1M02770012E3J晶振，日本Fujicom晶振公司，富士晶振，高精度晶振，進口晶振，超小型晶振，1610晶振，石英晶振，二腳晶振，無源晶振，音叉晶體，KHz晶振，貼片晶振，6G信號接收器晶振，6G網絡晶振，高品質晶振，F(xiàn)CT-1M晶振，超小尺寸1.6×1.0×0.5mm，高可靠性環保性能，高頻穩定性好，精度高，設計用于自動安裝和回流焊，符合RoHS標準/無鉛

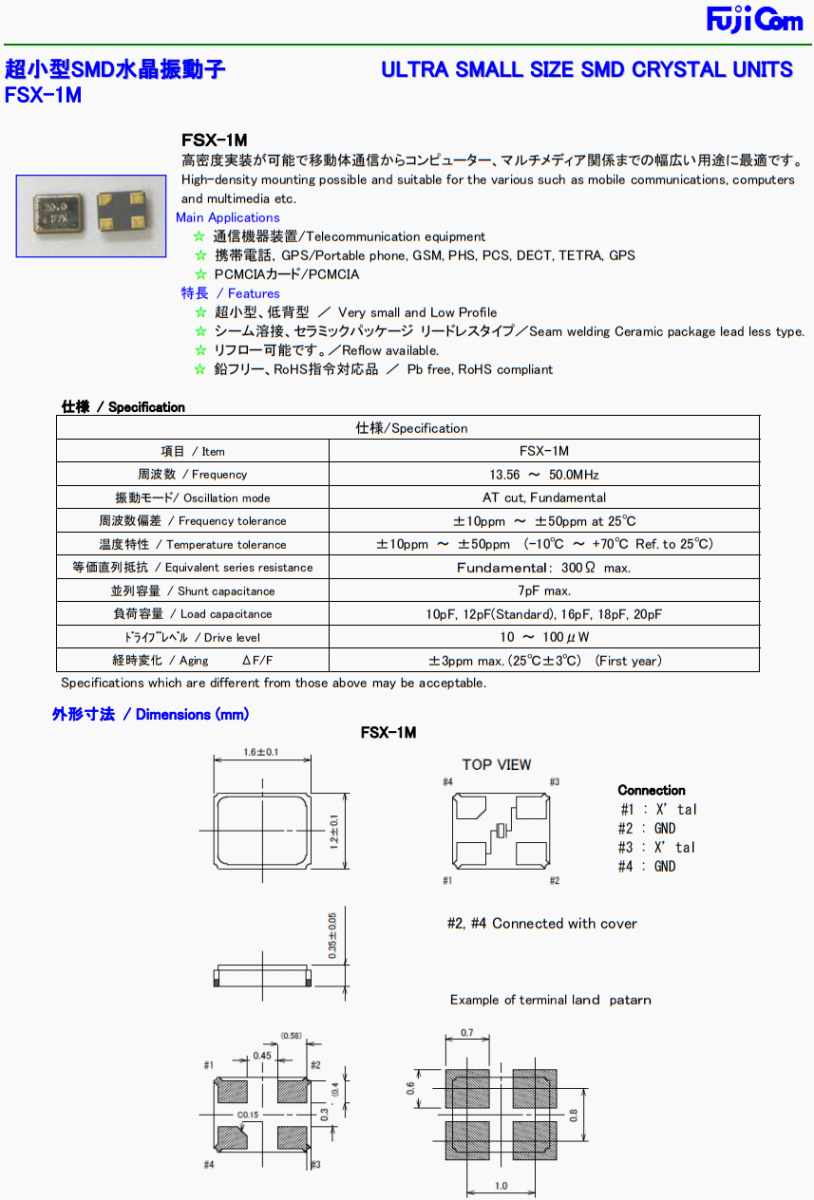

品規格參數圖.jpg)
FujiCom日本晶振,遙遙領先的6G無線傳輸晶振,FCX1M02770012E3J晶振
| 規格 | |
| 項目 | FSX-1M |
| 頻率 | 13.56 ～ 50.0MHz |
| 各種模式 | AT cut, Fundamental |
| 頻率容差 | ±10ppm ~ ±50ppm at 25℃ |
| 溫度范圍內的頻率穩定度 | ±10ppm ~ ±50ppm (-10℃ ~ +70℃ Ref. to 25℃) |
| 等效串聯電子 | Fundamental： 300Ω max. |
| 分流電容 | 7pF max. |
| 負載電容 | 10pF, 12pF(Standard), 16pF, 18pF, 20pF |
| 驅動電平 | 10 ～ 100μW |
| 老化 | ±3ppm max. (25℃±3℃) (First year) |

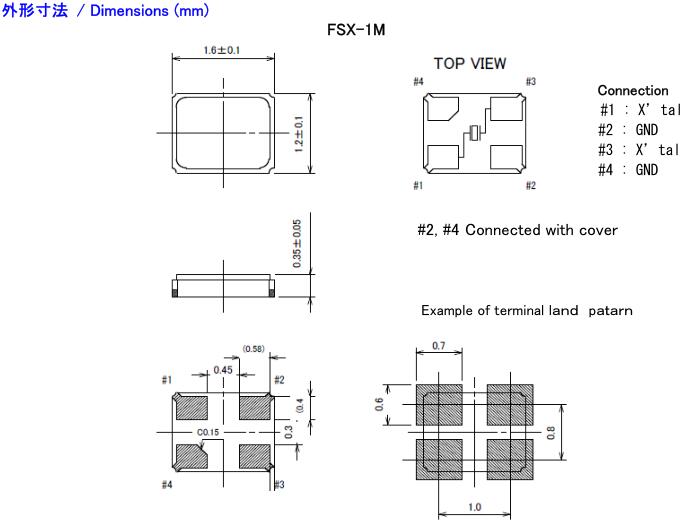

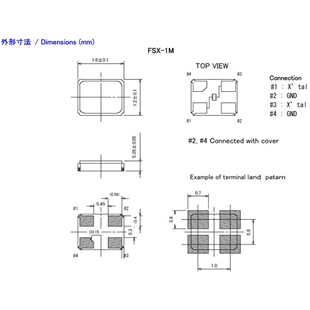

品尺寸圖.jpg)
FujiCom日本晶振,遙遙領先的6G無線傳輸晶振,FCX1M02770012E3J晶振
| 原廠編碼 | 生產商 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 | 工作溫度 |
| FCX1M04210512E3J | Fuji晶振 | FCX-1M | 42.105 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M04400012E3J | Fuji晶振 | FCX-1M | 44 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M02770012E3J | Fuji晶振 | FCX-1M | 27.7 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M02863012E3J | Fuji晶振 | FCX-1M | 28.63 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M02870412E3J | Fuji晶振 | FCX-1M | 28.704 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M04032012E3J | Fuji晶振 | FCX-1M | 40.32 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M04500012E3J | Fuji晶振 | FCX-1M | 45 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M04454512E3J | Fuji晶振 | FCX-1M | 44.545 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M04510012E3J | Fuji晶振 | FCX-1M | 45.1 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M04249612E3J | Fuji晶振 | FCX-1M | 42.496 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M03916812E3J | Fuji晶振 | FCX-1M | 39.168 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M04000012E3J | Fuji晶振 | FCX-1M | 40 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M02822412E3J | Fuji晶振 | FCX-1M | 28.224 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M04800012E3J | Fuji晶振 | FCX-1M | 48 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX2S02266012Y1J | Fuji晶振 | FCX-2S | 22.66 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S02400012Y1J | Fuji晶振 | FCX-2S | 24 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S02430512Y1J | Fuji晶振 | FCX-2S | 24.305 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S02211812Y1J | Fuji晶振 | FCX-2S | 22.118 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S02200012Y1J | Fuji晶振 | FCX-2S | 22 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S02194812Y1J | Fuji晶振 | FCX-2S | 21.948 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S04400015U3L | Fuji晶振 | FCX-2S | 44 MHz | ±50ppm | ±20ppm | 15pF | -40°C ~ 105°C |
| FCX2S03125012Y1J | Fuji晶振 | FCX-2S | 31.25 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S04000015U3L | Fuji晶振 | FCX-2S | 40 MHz | ±50ppm | ±20ppm | 15pF | -40°C ~ 105°C |
| FCX2S03040012Y1J | Fuji晶振 | FCX-2S | 30.4 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03705012Y1J | Fuji晶振 | FCX-2S | 37.05 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03000012Y1J | Fuji晶振 | FCX-2S | 30 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03333312Y1J | Fuji晶振 | FCX-2S | 33.333 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03333315Y1J | Fuji晶振 | FCX-2S | 33.333 MHz | ±30ppm | ±10ppm | 15pF | -40°C ~ 85°C |
| FCX2S02949112Y1J | Fuji晶振 | FCX-2S | 29.491 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S04096015U3L | Fuji晶振 | FCX-2S | 40.96 MHz | ±50ppm | ±20ppm | 15pF | -40°C ~ 105°C |
| FCX2S03840012Y1J | Fuji晶振 | FCX-2S | 38.4 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03740012Y1J | Fuji晶振 | FCX-2S | 37.4 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03800012Y1J | Fuji晶振 | FCX-2S | 38 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03900012Y1J | Fuji晶振 | FCX-2S | 39 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S04200015U3L | Fuji晶振 | FCX-2S | 42 MHz | ±50ppm | ±20ppm | 15pF | -40°C ~ 105°C |
| FCX2S04160015U3L | Fuji晶振 | FCX-2S | 41.6 MHz | ±50ppm | ±20ppm | 15pF | -40°C ~ 105°C |
| FCX2S03700012Y1J | Fuji晶振 | FCX-2S | 37 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03541612Y1J | Fuji晶振 | FCX-2S | 35.416 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03300012Y1J | Fuji晶振 | FCX-2S | 33 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03333012Y1J | Fuji晶振 | FCX-2S | 33.33 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03032012Y1J | Fuji晶振 | FCX-2S | 30.32 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03888012Y1J | Fuji晶振 | FCX-2S | 38.88 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03600012Y1J | Fuji晶振 | FCX-2S | 36 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S04800015U3L | Fuji晶振 | FCX-2S | 48 MHz | ±50ppm | ±20ppm | 15pF | -40°C ~ 105°C |
| FCX2S02257912Y1J | Fuji晶振 | FCX-2S | 22.579 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03386812Y1J | Fuji晶振 | FCX-2S | 33.868 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S03072012Y1J | Fuji晶振 | FCX-2S | 30.72 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S04500015U3L | Fuji晶振 | FCX-2S | 45 MHz | ±50ppm | ±20ppm | 15pF | -40°C ~ 105°C |
| FCX2S03200012Y1J | Fuji晶振 | FCX-2S | 32 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S02351212Y1J | Fuji晶振 | FCX-2S | 23.512 MHz | ±30ppm | ±10ppm | 12pF | -40°C ~ 85°C |
| FCX2S01600009E1D | Fuji晶振 | FCX-2S | 16 MHz | ±10ppm | ±10ppm | 9pF | -20°C ~ 70°C |
| FCX1M02714512E3J | Fuji晶振 | FCX-1M | 27.145 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M02950012E3J | Fuji晶振 | FCX-1M | 29.5 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M02949112E3J | Fuji晶振 | FCX-1M | 29.4912 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M02880012E3J | Fuji晶振 | FCX-1M | 28.8 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
| FCX1M02700012E3J | Fuji晶振 | FCX-1M | 27 MHz | ±30ppm | ±20ppm | 12pF | -20°C ~ 70°C |
