- 規格型號：79360688
- 頻率：24.000MHZ
- 尺寸：2016mm
- 產品描述：1XXB24000MEA|高精度表面貼裝|DSB221SDN晶振|工業無線通信設備,2520,24.000MHZ,石英貼片晶振,四腳貼片晶振,工業應用晶振,GPS定位系統晶振,TXCO晶振,能完美匹配工業無線網關的多節點數據交互,無線傳感器網絡(WSN)的實時...

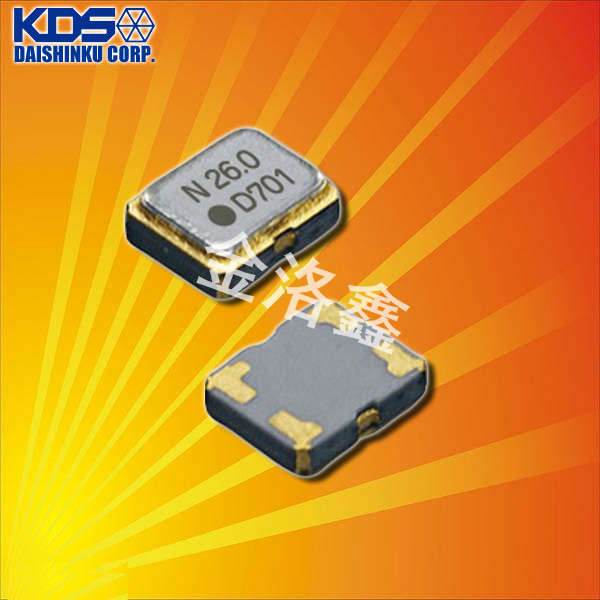

1XXB24000MEA|高精度表面貼裝|DSB221SDN晶振|工業無線通信設備
.png)
.png)
1XXB24000MEA|高精度表面貼裝|DSB221SDN晶振|工業無線通信設備
作為工業無線通信設備的"時鐘核心",1XXB24000MEA(DSB221SDN/高精度表面貼裝)晶振憑借工業級電路設計與高精度表面貼裝工藝的結構優勢,具備卓越的抗電磁干擾,耐極端溫濕度及低功耗能力,可從容應對工業環境的嚴苛挑戰.在-40℃的極寒低溫(如北方戶外工業基站冬季工作環境)至+105℃的高溫(如工廠高溫生產車間,設備散熱不良的密閉機柜)范圍內,其內部諧振單元的頻率穩定性誤差可控制在±3ppm以內,遠優于普通工業應用晶振標準,確保工業無線網關在低溫下正常接入云端平臺,無線傳感器在高溫下精準傳輸監測數據(如設備溫度,壓力數據),工業藍牙模塊在溫差劇烈變化中維持穩定通信.針對工業場景中強電磁干擾(如工廠大型電機運轉,高壓設備工作產生的電磁輻射)問題,該晶振通過特殊晶體切割工藝與金屬屏蔽封裝設計,將電磁干擾導致的頻率偏移量控制在±1ppm以下,有效避免因外部干擾引發的無線通信信噪比下降(如信噪比從20dB提升至30dB以上),信號傳輸速率降低,確保工業數據傳輸?shù)耐暾耘c實時性.
.png)
.png)

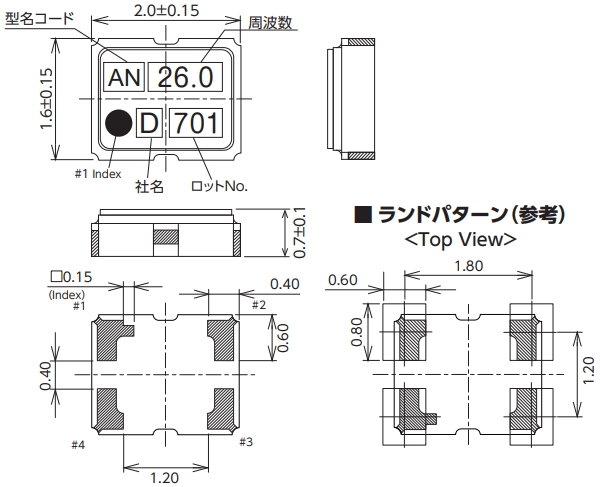

1XXB24000MEA|高精度表面貼裝|DSB221SDN晶振|工業無線通信設備
| 原廠型號 Originalmodel： | 1XXB24000MEA | 品牌brand： | KDS晶振 |
| Manufacturer品牌 | 大真空晶振 | OperatingTemperature溫度 | -40°C ~ 85°C |
| Series型號 | DSB221SDN | Current-Supply(Max) | - |
| Type類型 | TCXO | PackageHeight高度 | 0.70mm |
| Frequency頻率 | 24.000MHZ | Termination 腳位 | 4pad |
| 輸出方式 Output： | CMOS | PackageType 封裝類型 | 4-SMD |
| Voltage-Supply電壓 | +1.68 +3.5V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | - | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 2016mm | 最小包裝數MPQ： | 3000 |
.png)
.png)
1XXB24000MEA|高精度表面貼裝|DSB221SDN晶振|工業無線通信設備
.png)
1XXB24000MEA|高精度表面貼裝|DSB221SDN晶振|工業無線通信設備
| KDS晶振 | 1TJF0SPDJ1AI00S | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF080DP1AI00P | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF090DP1AI007 | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AI008 | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF125DP1AI009 | DST310S | 3215 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TJF090DP1AA00L | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF080DP1AA00K | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AA00G | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF0SPDN1A000B | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TD125DGNS003 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS036 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS002 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD060DHNS014 | DT-26 | 206 | 32.768KHZ | 6.0PF | 20PPM |
| KDS晶振 | 1TD125BHNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD075BHNS001 | DT-26 | 206 | 32.768KHZ | 7.5PF | 10PPM |
| KDS晶振 | 1TD125BFNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD1001HNS001 | DT-26 | 206 | 32.768KHZ | 10.0PF | -6/+2PPM |
| KDS晶振 | 1TD1250HNS005 | DT-26 | 206 | 32.768KHZ | 12.5PF | 30/40P |
| KDS晶振 | 1TC125DFNS030 | DT-38 | 308 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TC125NFNS002 | DT-38 | 308 | 32.768KHZ | 12.5PF | 1000PPM |
| KDS晶振 | 1TC125AFSS003 | DT-38 | 308 | 32.768KHZ | 12.5PF | 5PPM |
| KDS晶振 | 1TC250E65 | DT-38 | 308 | 32.768KHZ | 12.5PF | +12/+28PPM |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000MHZ | 10PF | 10PPM |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6MHZ | 10PF | 30PPM |
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332MHZ | 12PF | 20PPM |
| KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000MHZ | 20PF | 30PPM |
| KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000MHZ | 10PF | 20PPM |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000MHZ | 11PF | 12PPM |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000MHZ | 10PF | 30PPM |
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000MHZ | 15PF | 15PPM |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AJ100005B | SMD-49 | 11*4.6 | 10.000MHZ | 12PF | 50PPM |
| KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576MHZ | 18PF | 30PPM |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000MHZ | 12.9PF | 20PPM |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400MHZ | 12PF | 50ppm |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367MHZ | 2.8V | 1.5ppm |
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC09382 | DSA535SG | 5032 | 18.432MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000MHZ | 12PF | 15ppm |
| KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000MHZ | 10PF | 30ppm |
| KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000MHZ | 9PF | 10ppm |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000MHZ | 8PF | 10ppm |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000MHZ | 10PF | 20ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6MHZ | 3.3V | 100ppm |
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000MHZ | 7PF | 20PPM |
| KDS晶振 | 1N227000EE0L | DSX321G | 3225 | 27.000MHZ | 9PF | 50ppm |
| KDS晶振 | 1ZZCAA27120BB0D | DSX211G | 2016 | 27.12MHZ | 10PF | 20PPM |
| KDS晶振 | 1N226000AA0L | DSX321G | 3225 | 26.000MHZ | 7.5pf | 10ppm |
